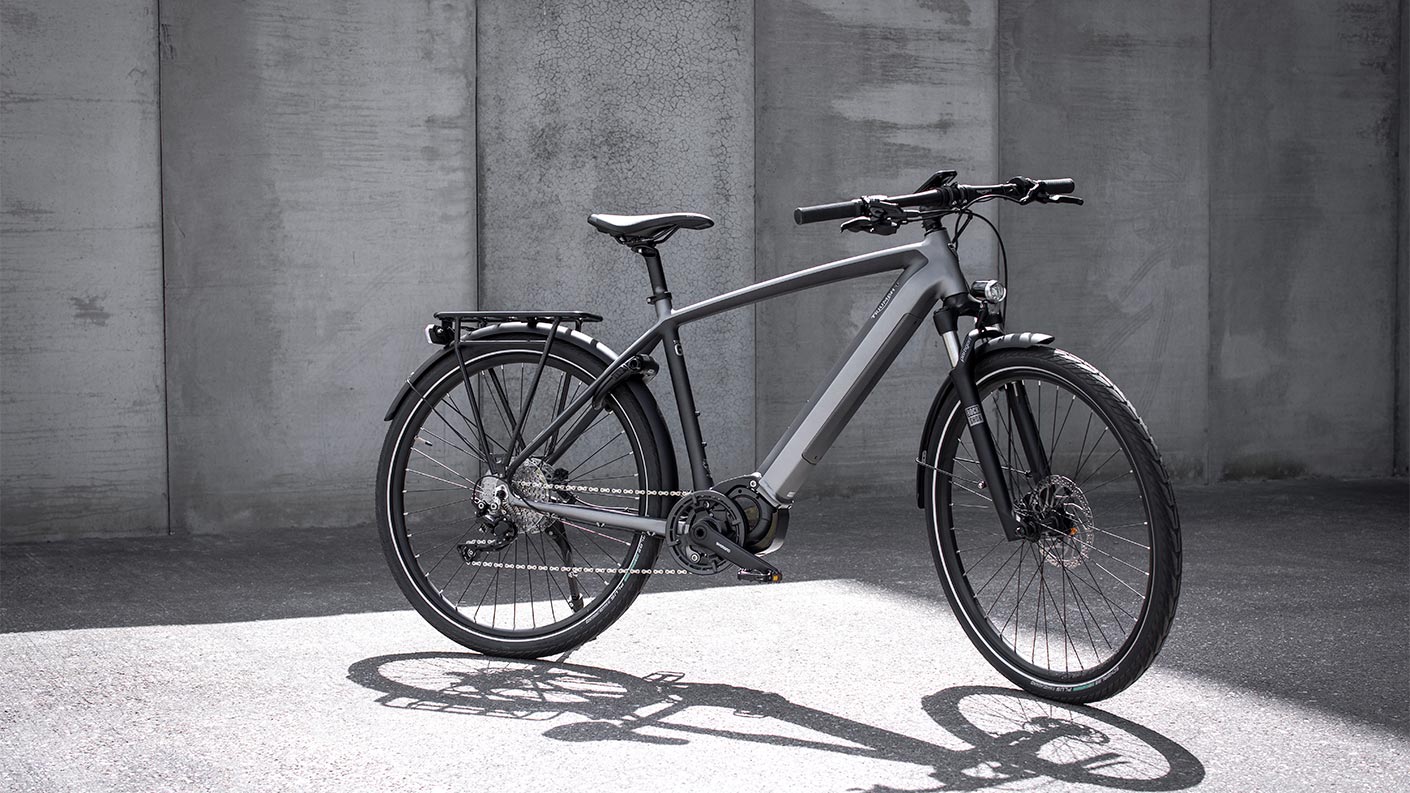

Triumph Trekker

TREKKER

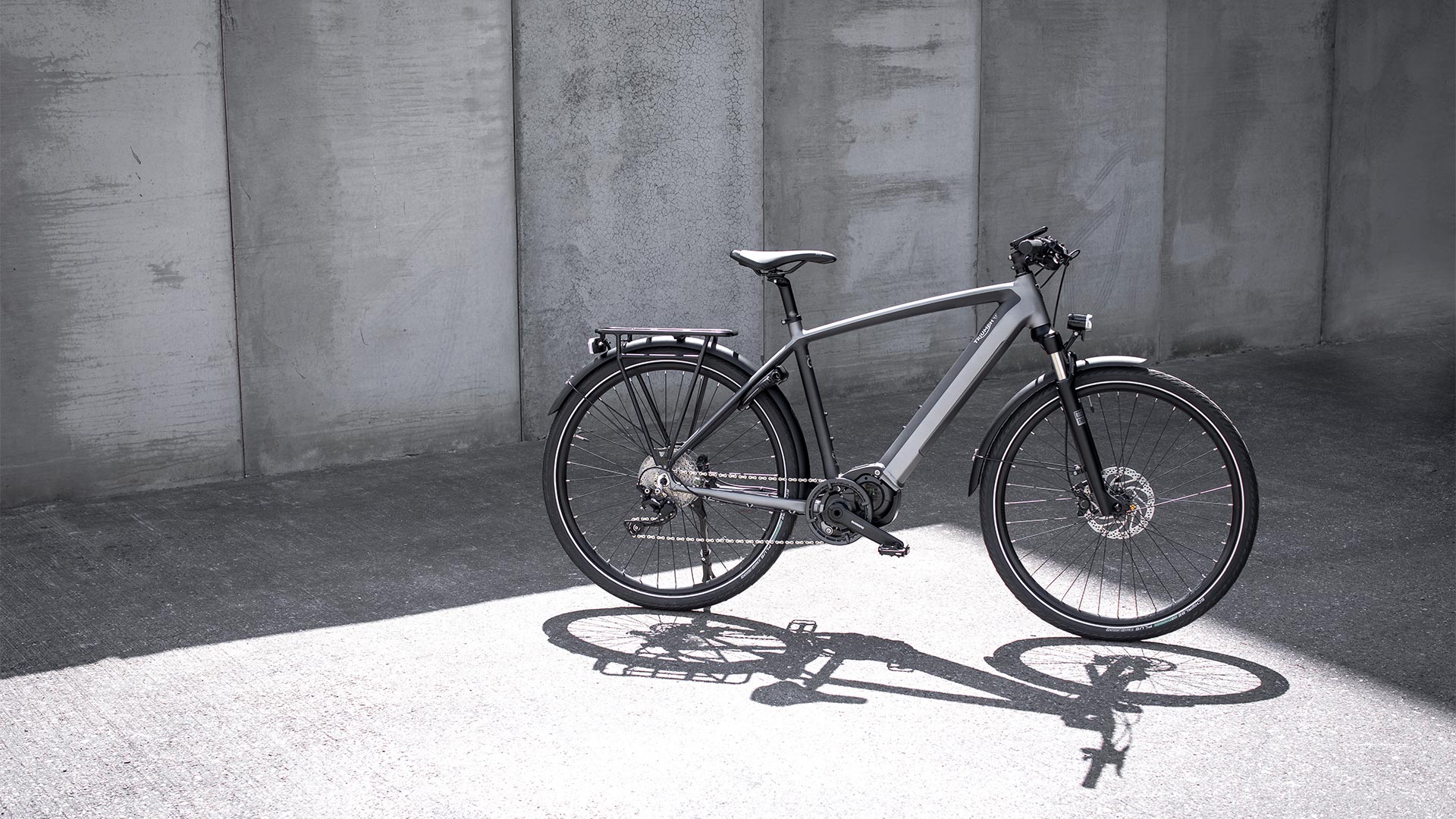

Introducing Triumph’s first electric bicycle

Price from: £2,950





Triumph’s passion for two-wheeled performance and riding fun brings together for the very first time the latest in e-drive bicycle technology alongside Triumph’s world renowned elegant style, comfort, quality and finish.

The new Trekker is the perfect all-road choice for commuting, fitness and everyday riding fun, enhanced by high specification branded equipment including premium components from Shimano and RockShox, and its high performing Shimano e-drive.






Triumph Trekker
Triumph Trekker

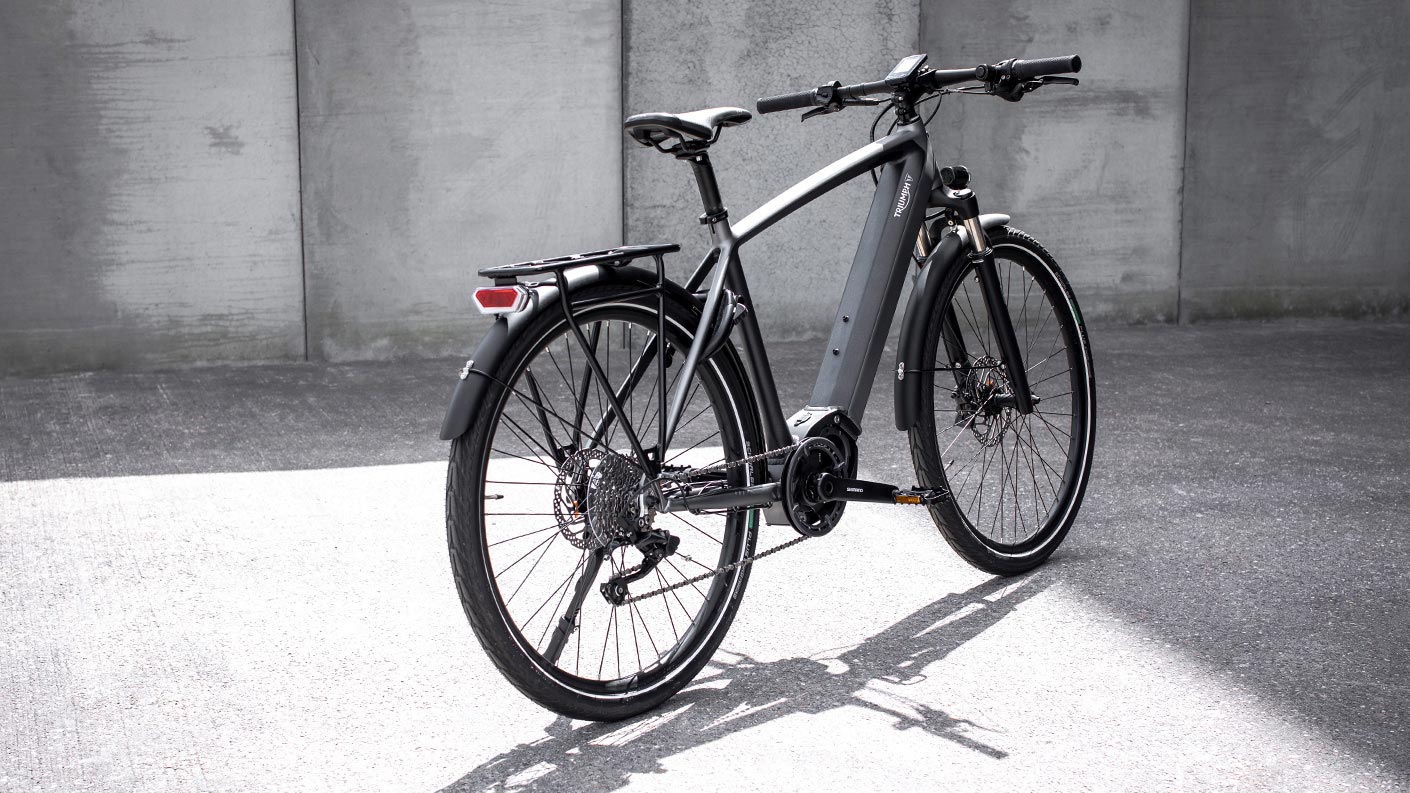

Combining performance engineering and a premium array of components with the latest iteration of Shimano’s battery and drivetrain technology, the Trekker is the very first e-cycle in Triumph’s 118-year history.

Designed in the UK by Triumph’s world leading styling team, the elegant frame combined with the narrow-width handlebars and the ultra-comfort of the Selle Royal Vivo saddle, provides the rider with optimal ergonomics and great rider control.



SPECIFICATION

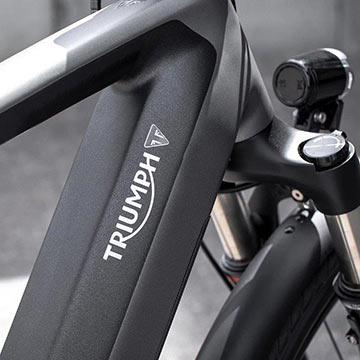

Frame: Triumph Trekker Alloy frame, full internal cable routing, integral lockable battery compartment with ABUS lock, satellite charging socket, QR Dropout.

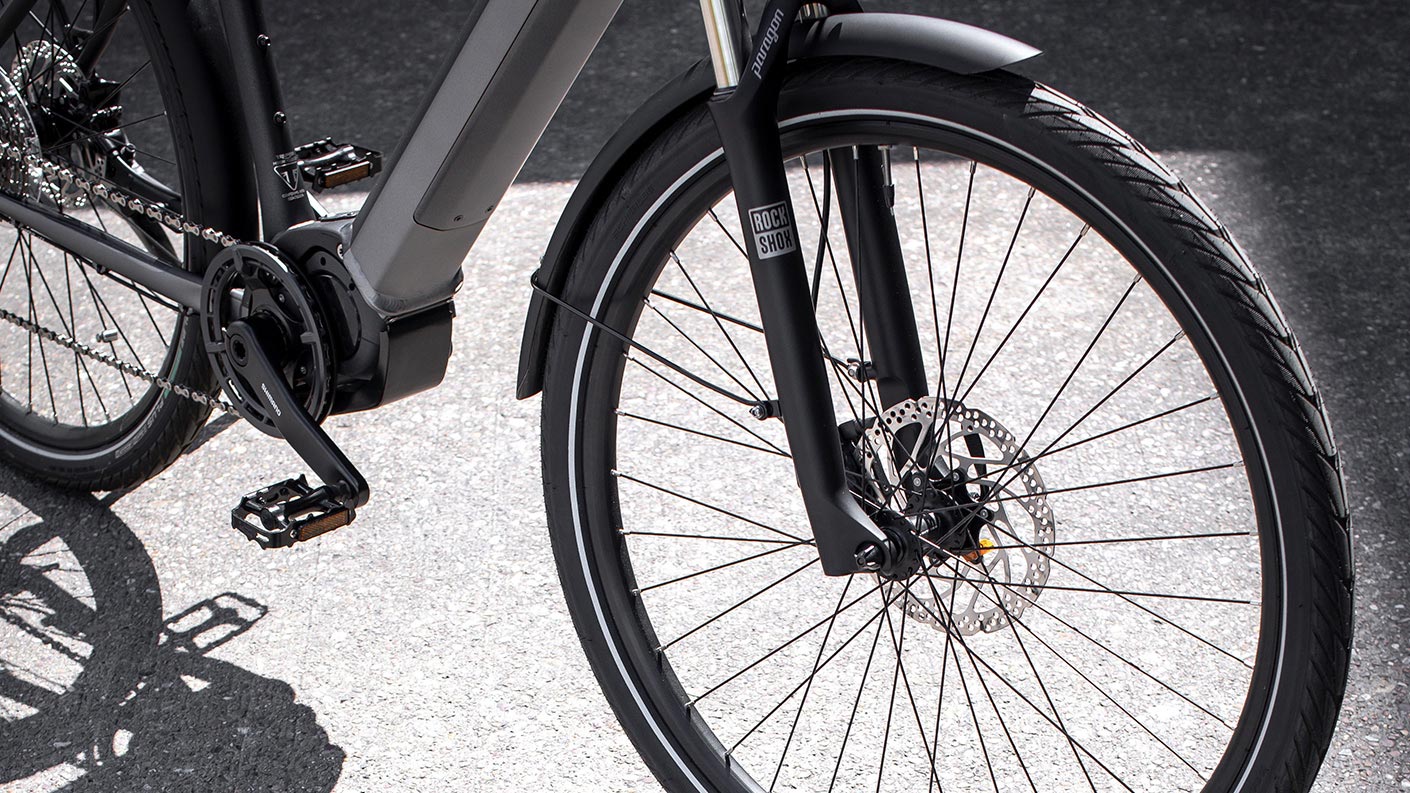

Fork: Rockshox Paragon Silver TK 65mm travel with Turnkey lockout damper in diffusion black finish.

Front hub: Shimano HB-RM35, Center Lock disc, Quick Release axle

Rear hub: Shimano FH-RM35, Center Lock disc, Quick Release axle

Rim: Alex FR30, 36-hole, 30 mm width, Presta valve

Tyre: Schwalbe Energizer Plus Performance Greenguard 650b.

Battery: Shimano BT-8035 Integrated 504Wh

Charger: Shimano EC-E6002 2A with adaptor

Motor: Shimano DU-E6100, 250w, 60Nm.

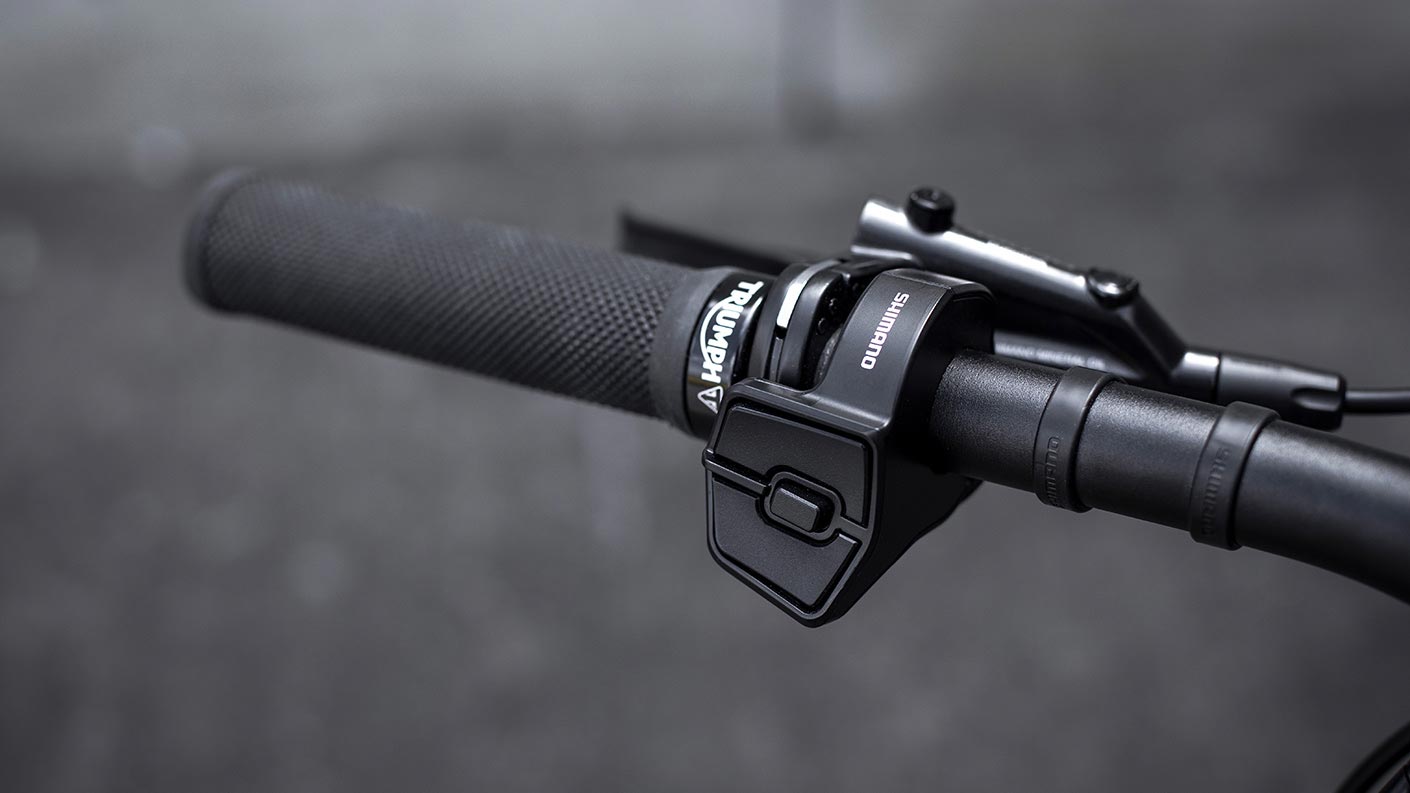

Shifter: Shimano SL-M6000-R Deore, Rapidfire Plus 10 Speed

Rear: derailleur Shimano RD-M6000, long cage, Shadow Plus 10 Speed

Crank Arm: Shimano FC-E6100, *S/M – 170mm, L – 175mm with 38T Chain ring

Cassette: Shimano KCSHG5010136, 11-36T, 10-speed

Chain: KMC E10S 120L 10 Speed Nickel/Black

Pedal: Wellgo M272DU Alloy Bodied with reflector

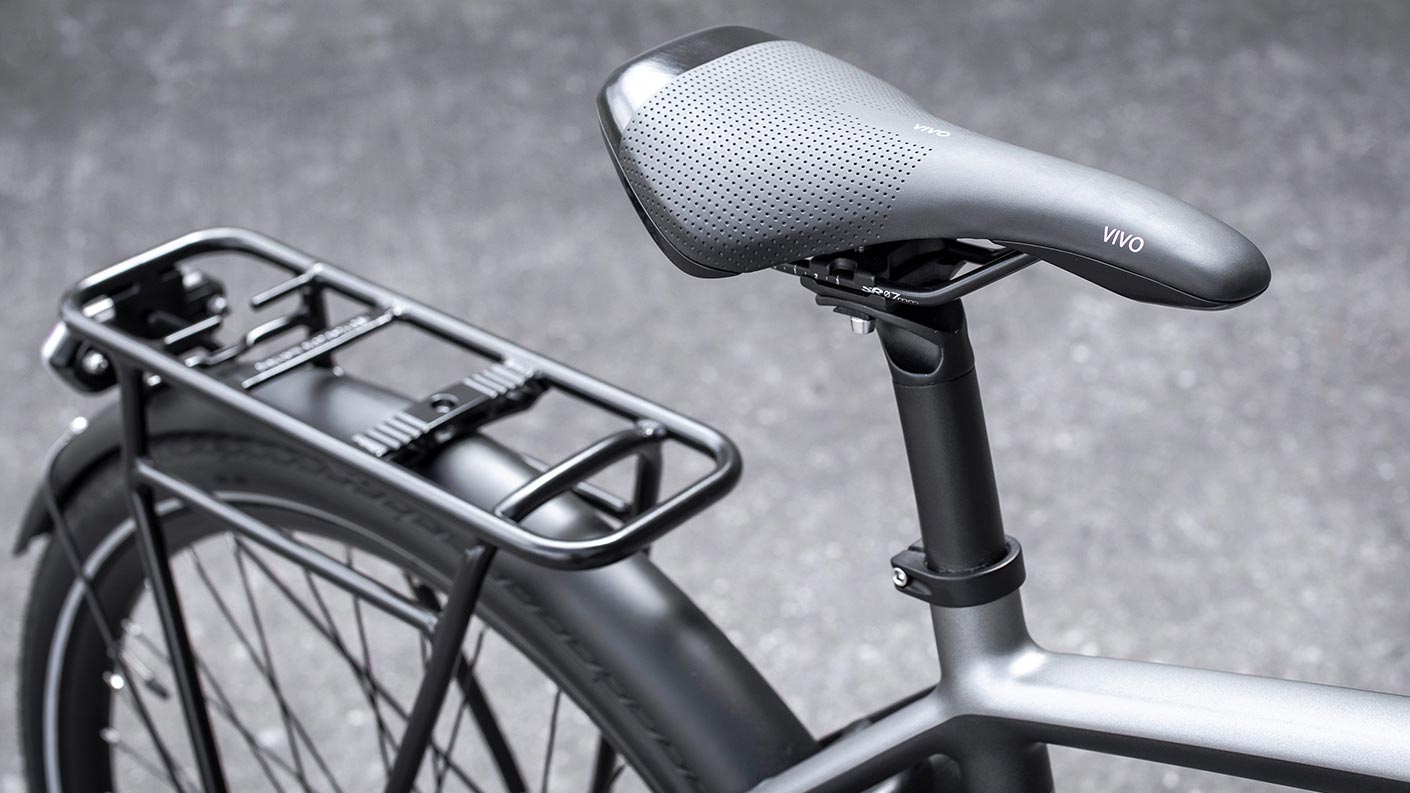

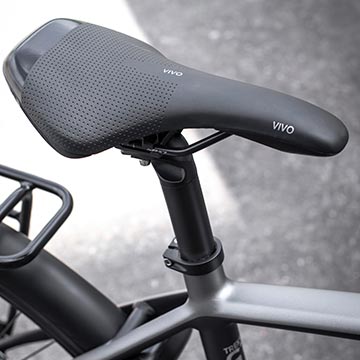

Saddle: Selle Royal Vivo Havac Tech

Seat post: Triumph Alloy, 34.9 mm, *S/M 300mm L 350 mm length, Black

Handlebar: Triumph, Alloy 31.8 mm, 9º Rearwards, 680 mm width, Black

Grips: Triumph, Lock-On, 132mm, Black

Stem: Triumph Alloy 7º Rise, Black. *S – 70mm, M/L – 80mm.

Brake: Shimano BL-M6000/BR-M6000 Deore Levers/Calipers

Brake Rotor: Shimano SM-RT30 F-180mm, R-160mm

Front Light: Benex ET-3502-E 90 LUX LED 350LM with integrated reflector

Rear Light: Benex ET-3213-E LED with light tube, 50LM with integrated reflector

Kickstand: Ostand CD-177BA Alloy, Black

Cargo rack: Ostand EX-CP55-AB Alloy, Black

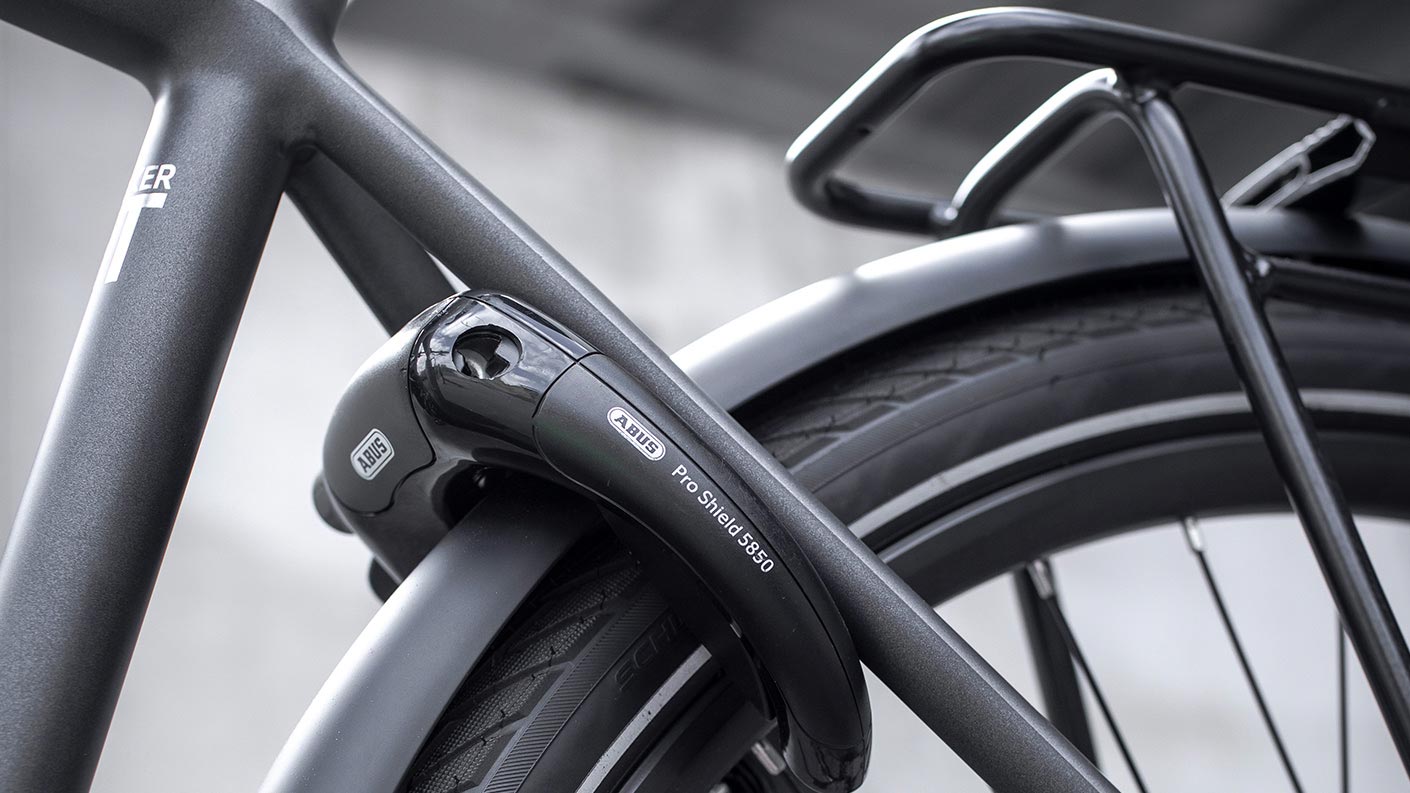

Rear Wheel Lock: ABUS 5850 Pro Shield

Weight Medium Frame - 24 kg. (Including battery) Weights may vary in final production.





TREKKER GEOMETRY

Frame Size Small (450mm) Medium (500mm) Large (550mm)
Rider Height 155cm -165cm 165cm -180cm 180cm +
Triumph Trekker Geometry Illustration
  S M L
A Seat Tube C-T 45 50 55
B Effective Top Tube Length 59.1 61.7 63.8
C Wheelbase 111 113 115
D Head Tube Length 11 13 15
E Head Angle 69.5 70 70.5
F Seat Tube Angle 73 73 73
G Chainstay Length 45 45 45
H Bottom Bracket Drop 55 55 55
I Frame Stack 59.1 61.2 63.3
J Frame Reach 41 43 45
K Crank Length 17 17 17.5
L Fork Offset (Rake) 4.6 4.6 4.6
M Standover height 75.7 79.1 82.8
N Wheel Size 27.5" 27.5" 27.5"

All the above are in CM unless otherwise indicated.

Triumph Trekker Electric Bicycle Detail

HIGH PERFORMING E-DRIVE

The Trekker delivers the latest generation of electric drive technology and is crafted with a narrow width for natural riding feel and great comfort, while the elegant and minimal integrated components blend into the frame.

With an approximate riding range of 150km, the Shimano Steps E6100 250w motor and Shimano E8035 504Wh battery combine to deliver an electric motor-driven boost of up to 60Nm torque with a smooth and satisfying response.

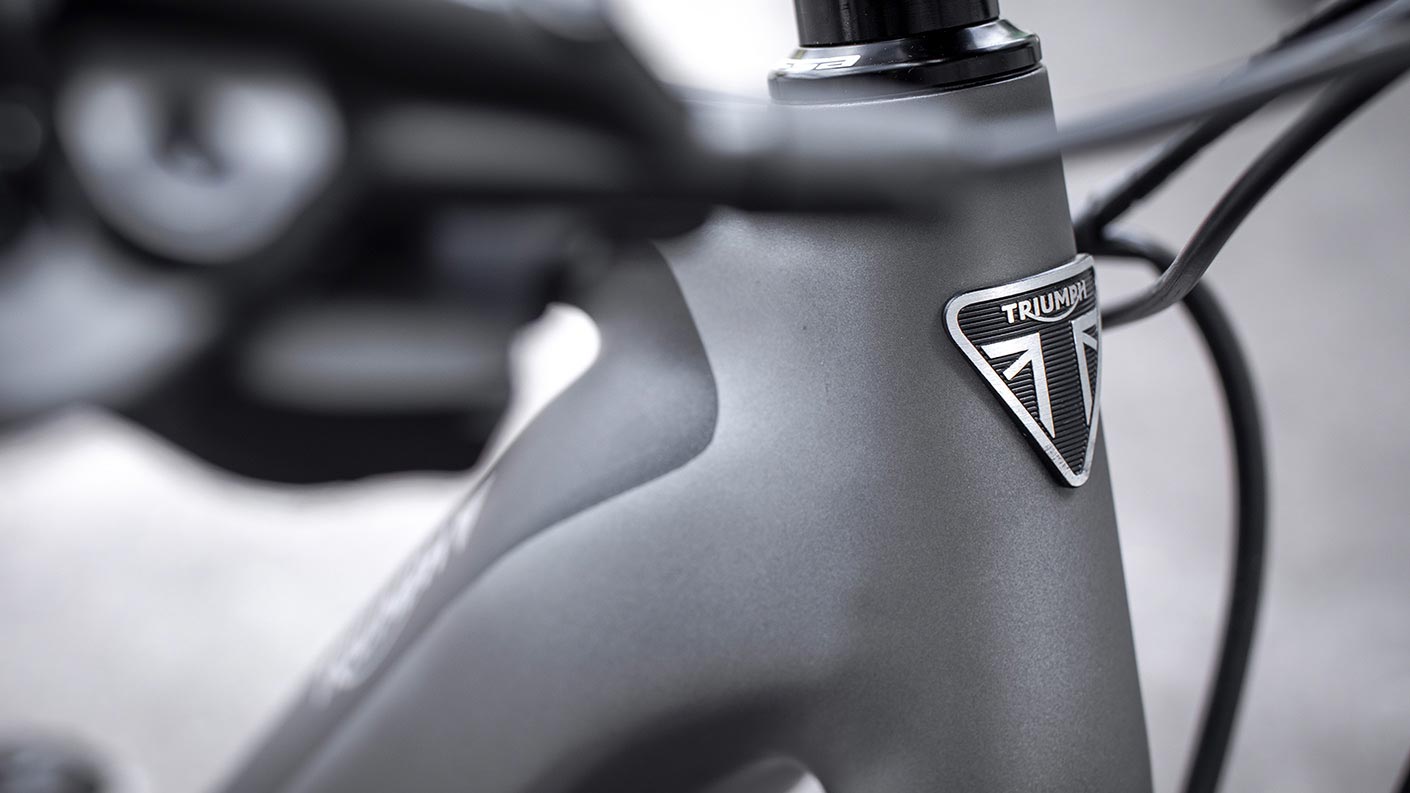

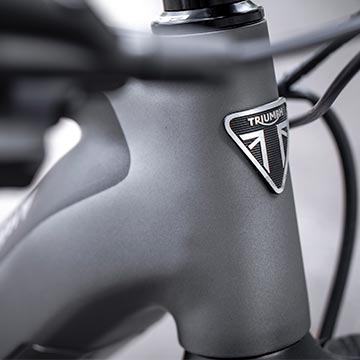

DISTINCTIVE TRIUMPH STYLE

TREKKER ACCESSORIES

Optional accessories that add an extra dimension to the security and maintenance of your Trekker.

Triumph Security

HEAVY-DUTY SECURITY:

Safeguard your Trekker with accessories including 270mm U-lock, high security chain & lock, and ground anchor.

Triumph Muc-Off Cleaning Kit

MUC-OFF CLEANING KIT:

Includes cleaner, degreaser, protectant, chain lube, micro-fibre cloth, microcell sponge and Triumph-branded bag.

Step

TRIUMPH’S FIRST ELECTRIC BICYCLE

Fully-integrated high performance e-drive, premium branded equipment and elegant style from Triumph’s first-ever electric bicycle.
Make sure you receive all our latest information about the all-new Trekker.

We take our data responsibilities very seriously. Triumph has always and will continue to respect the data we hold about you.

*spec applies to all sizes unless otherwise noted

Triumph reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, colours, and materials
